In my spare time, i do the oddbit of engine rebuild work for my mates, |

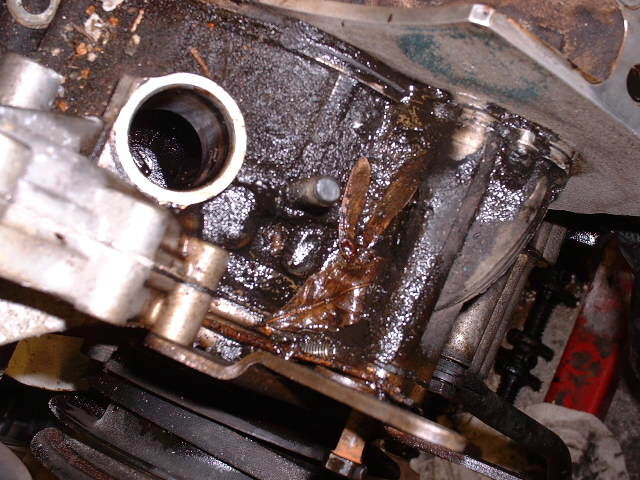

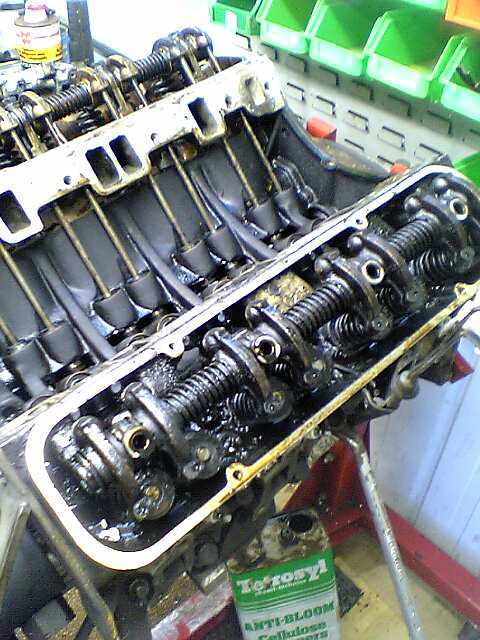

This is my mate Marks 3.9 v8 which he bought to replace the 3.5 v8 he has now, But as you can see it is in a grim state. |
|
|
After many hours of scrubbing it started to clean up, |

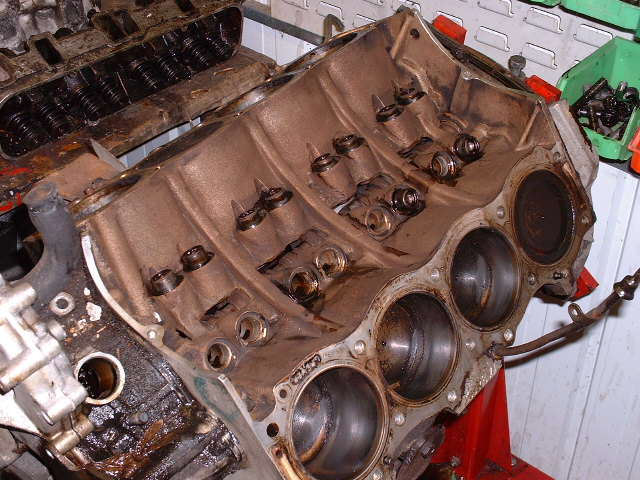

After many more hours the block starts to look real smart, |
|
|

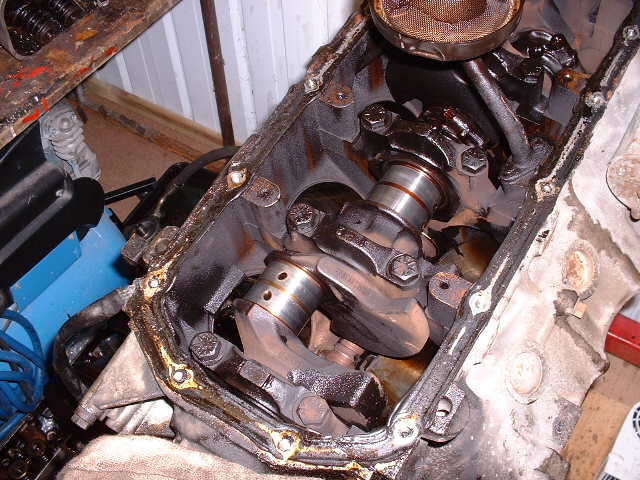

The bottom end was not much better, |

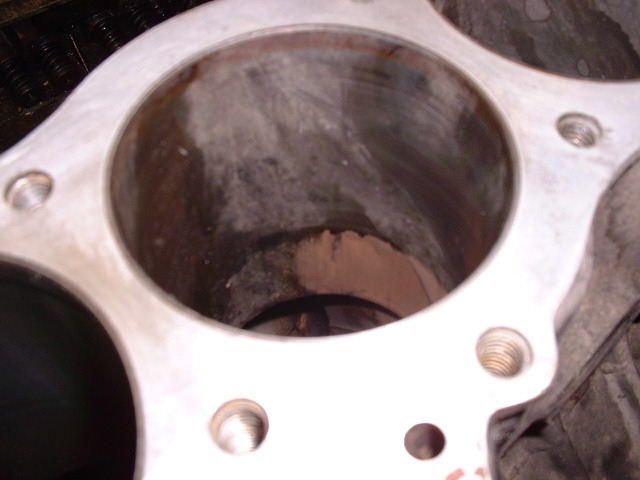

After the block was cleaned down it was time for work, the bores looked like they could do with a freshen up |
|
|

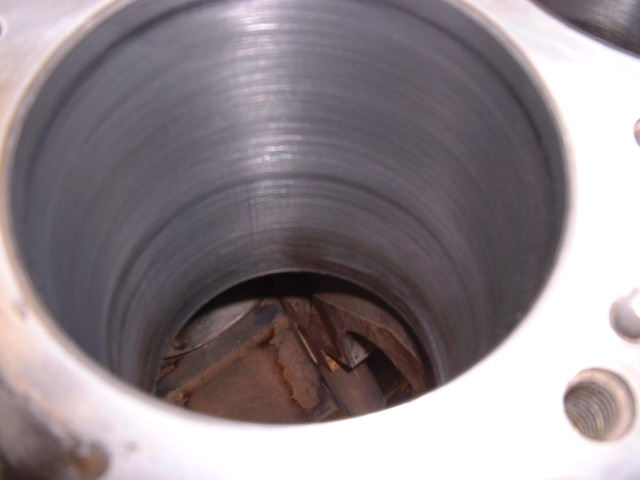

After a honing the bores are nearly ready for the new rings. |

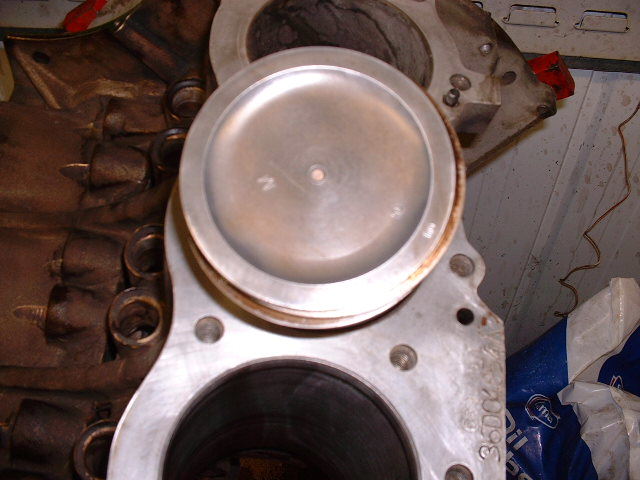

Pistons ready for refit also now after a good clean, |
|
|

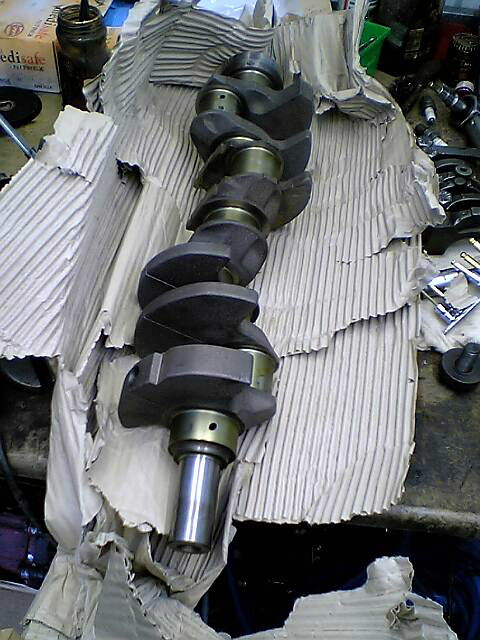

Freshly reground HRC crank with new bearings |

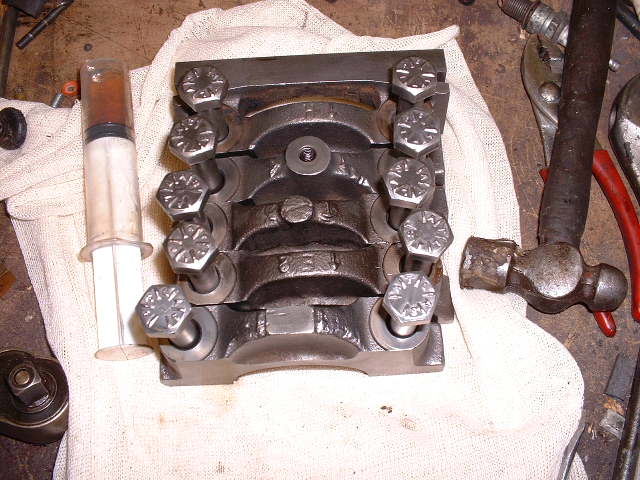

Even the main caps and bolts got the clean up treatment |
|
|

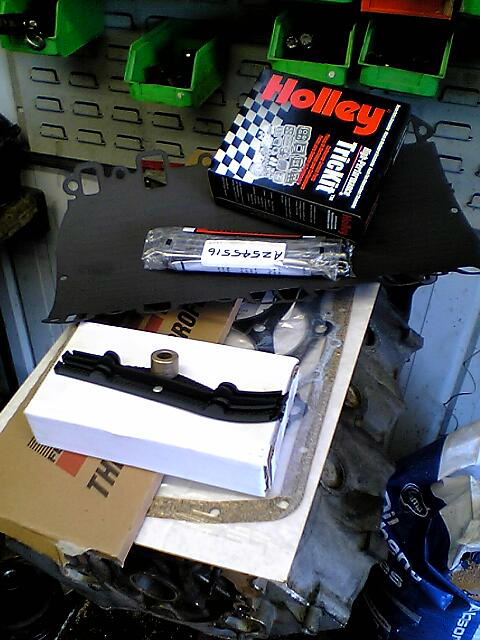

After trip to Real Steel, I had a nice collection up parts for Marks 3.9, these included, moly adjustable pushrods, complete gasket kit, holley trick kit, |

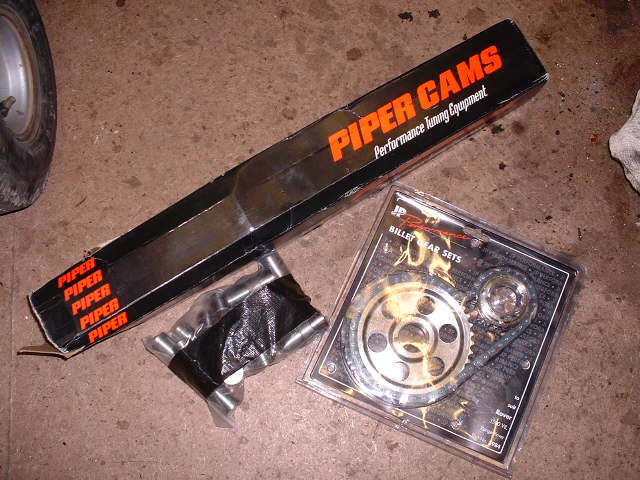

The cam i am fitting is a piper 270, not as mad as the 285 in my 3.9, but will still make enjoyable driving off the lights, to top this off is a double timing chain and steel gears, |
|
|

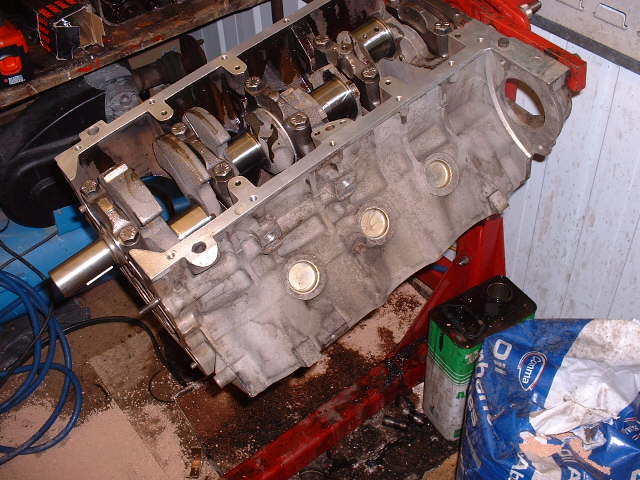

The crank fitted along with a new set of core plugs, |

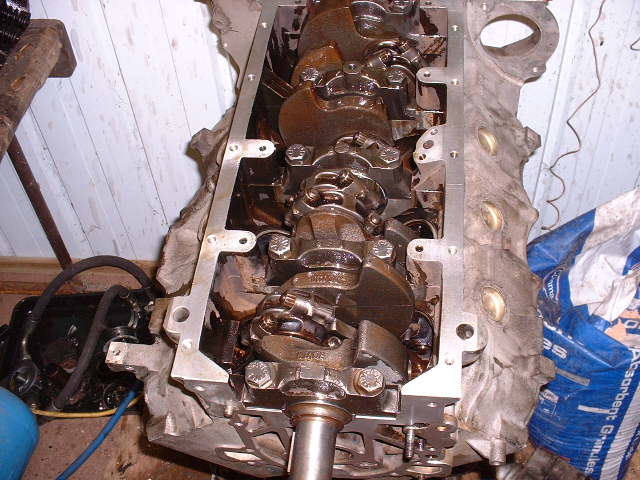

Pistons also now fitted, |
|
|
Top view of the pistons all cleaned and fitted, |

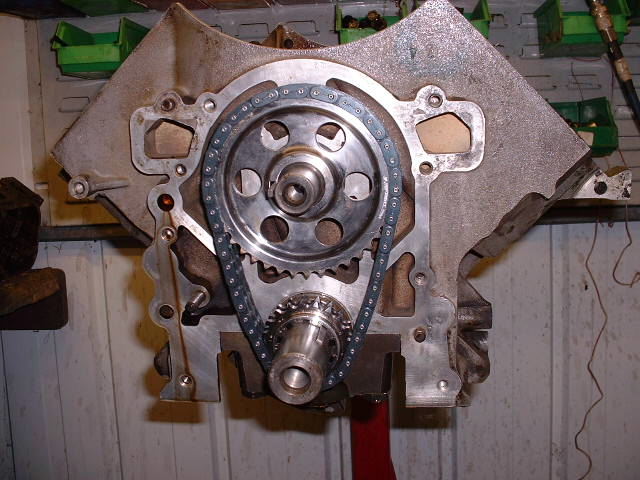

Cam gear on trial fit, next job is dialing the cam in, |
|
|

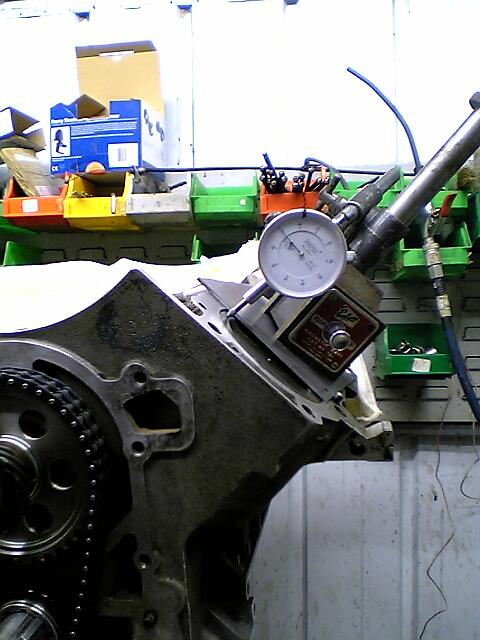

Setting No1 piston at TDC with a dial gauge |
Checking the cam lift, as to work out the full lift |
|
|

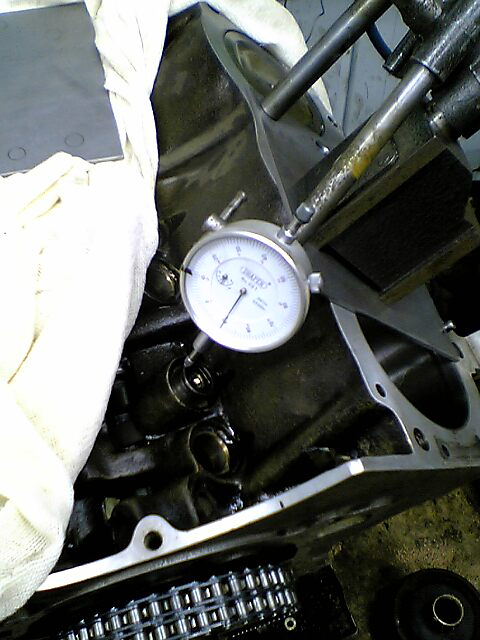

Cam gauge fitted awaiting the cam to be dialled in, |

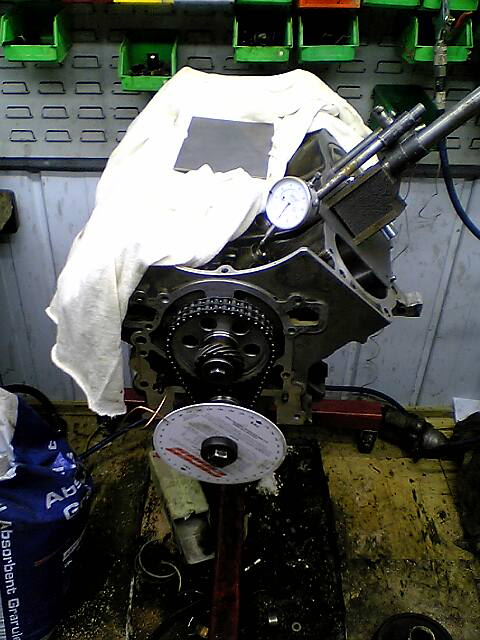

Second view of cam being dialled in |
|
|
Here you can see me setting the lifter preload with adujstable push rods |

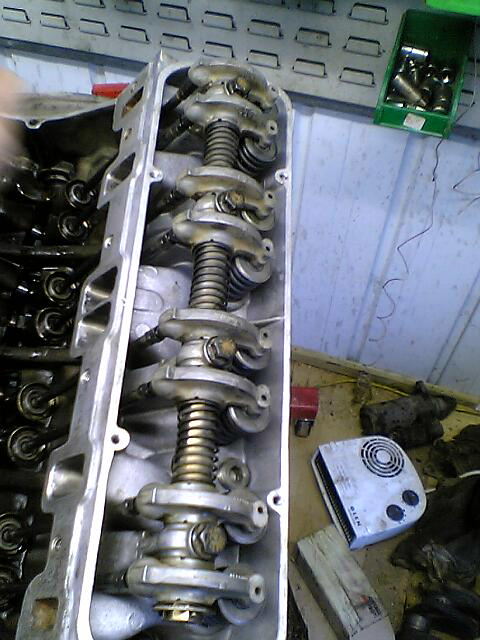

Stage1 heads were used for Mark's 3.9 |
|
|

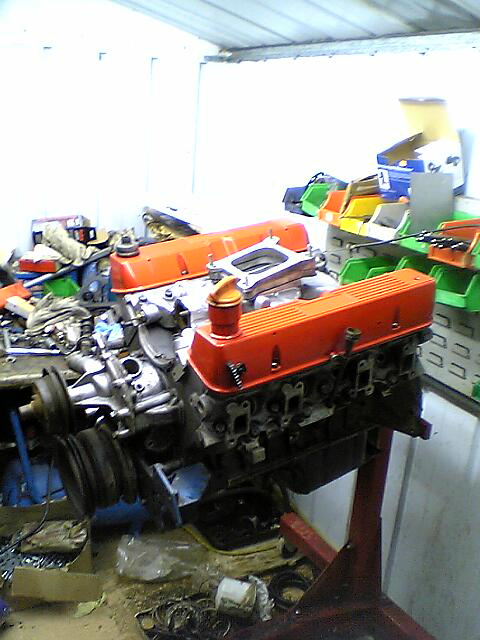

The engine nearing final fitment,please click pic for larger version.
|
|
